RA3 Alignment Guide STL File – xTool F2 Ultra & F2 Ultra UV (Digital Download)
Sell what you make, not the jig. Print this jig and sell anything you make with it. The printed jig itself and this file may never be sold, shared or given away, original or modified.
⬇️ Digital download · Delivered instantly by email · Nothing is posted
🖨️ Printer needed: a print bed of at least 200 x 150 mm (7.9 x 5.9 in)
Couldn't load pickup availability
Digital file delivered by email straight after checkout
Designed and printed by Chris · my story
⚠️ DIGITAL DOWNLOAD ONLY – NO PHYSICAL PRODUCT
This listing is for the 3D printable STL file of the RA3 Alignment Guide.
You are purchasing a digital design file only.
No physical alignment rail will be shipped.
Please read carefully before purchasing.
Product Overview

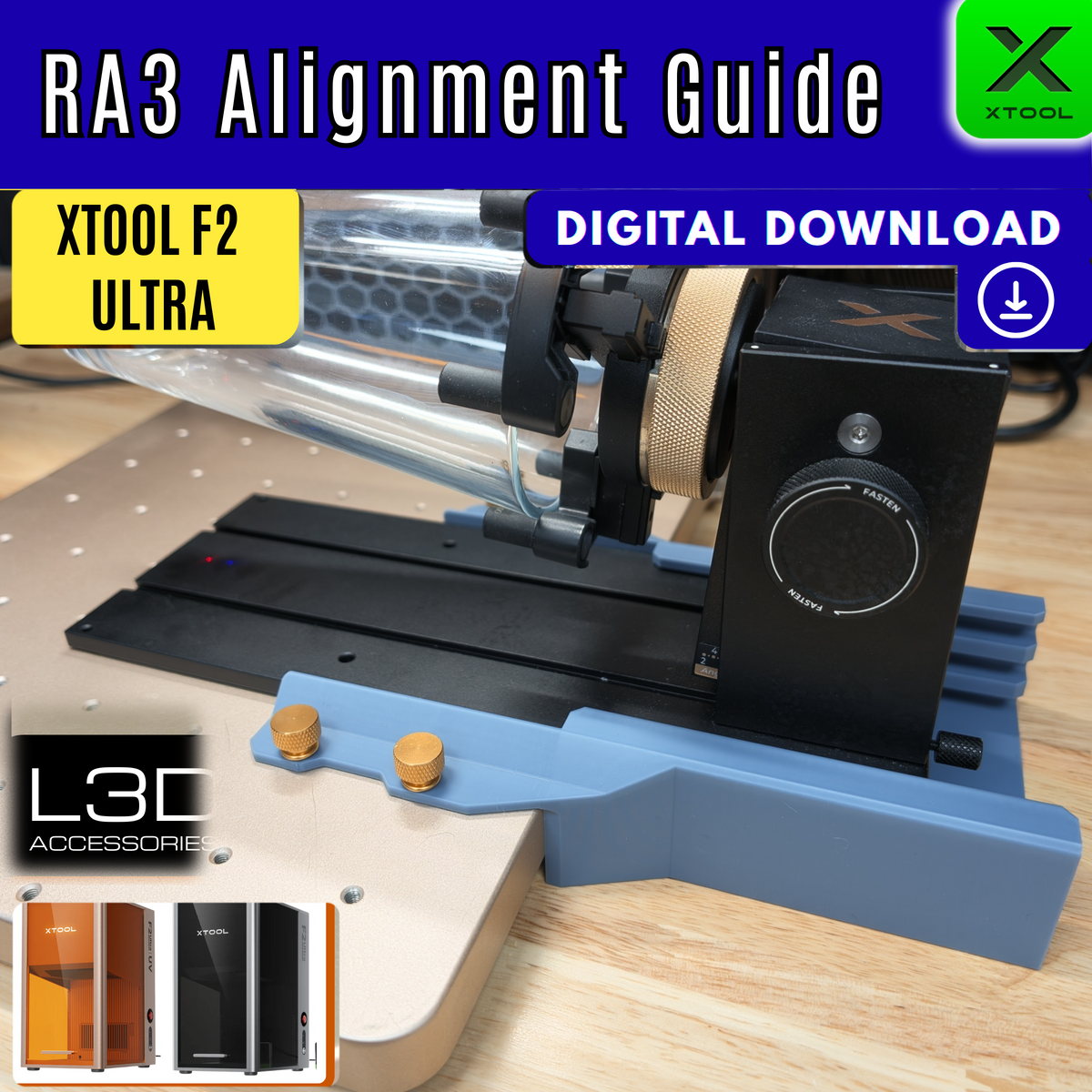

Print your own precision alignment rail designed specifically for the xTool RA3 rotary tool when used with the F2 Ultra or F2 Ultra UV.

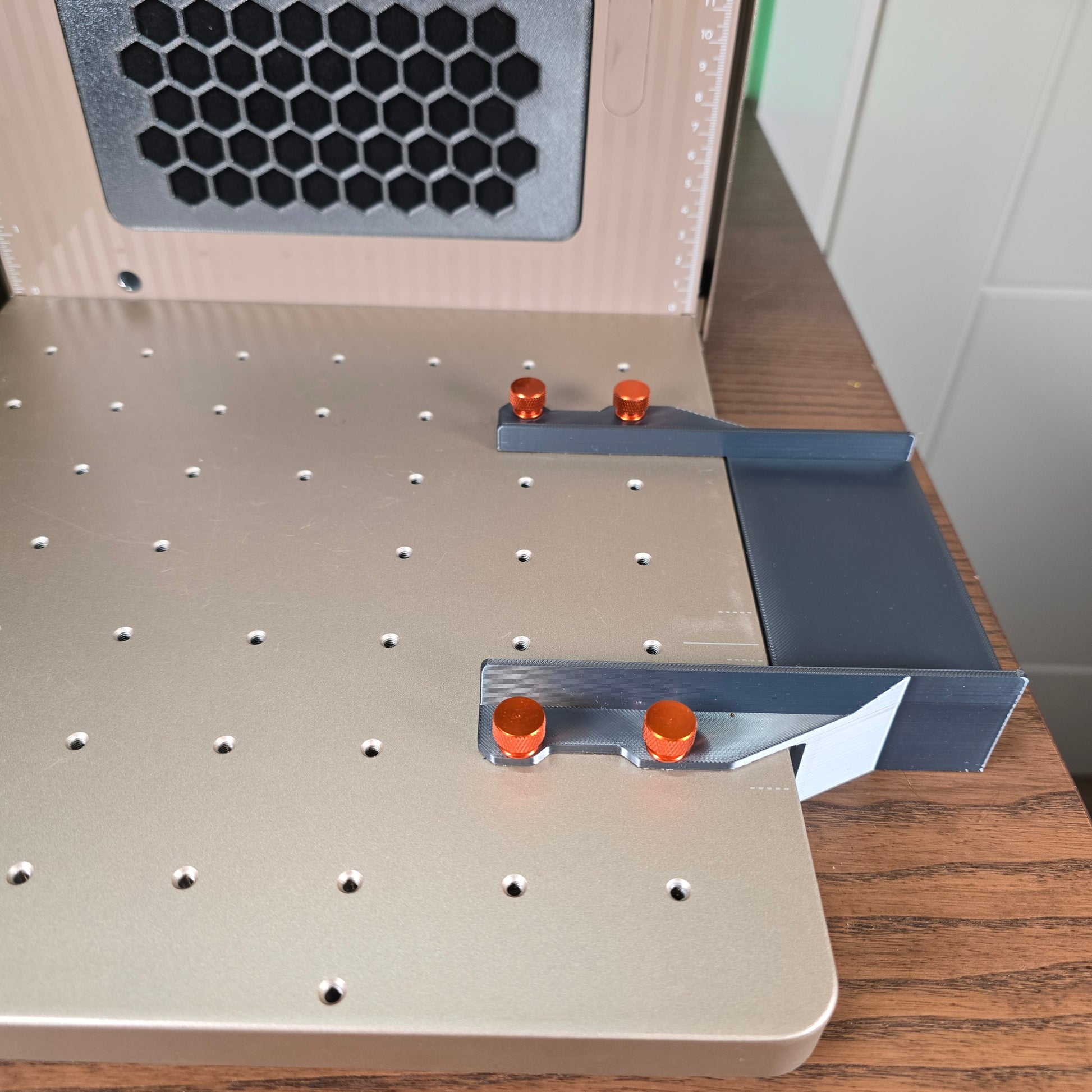

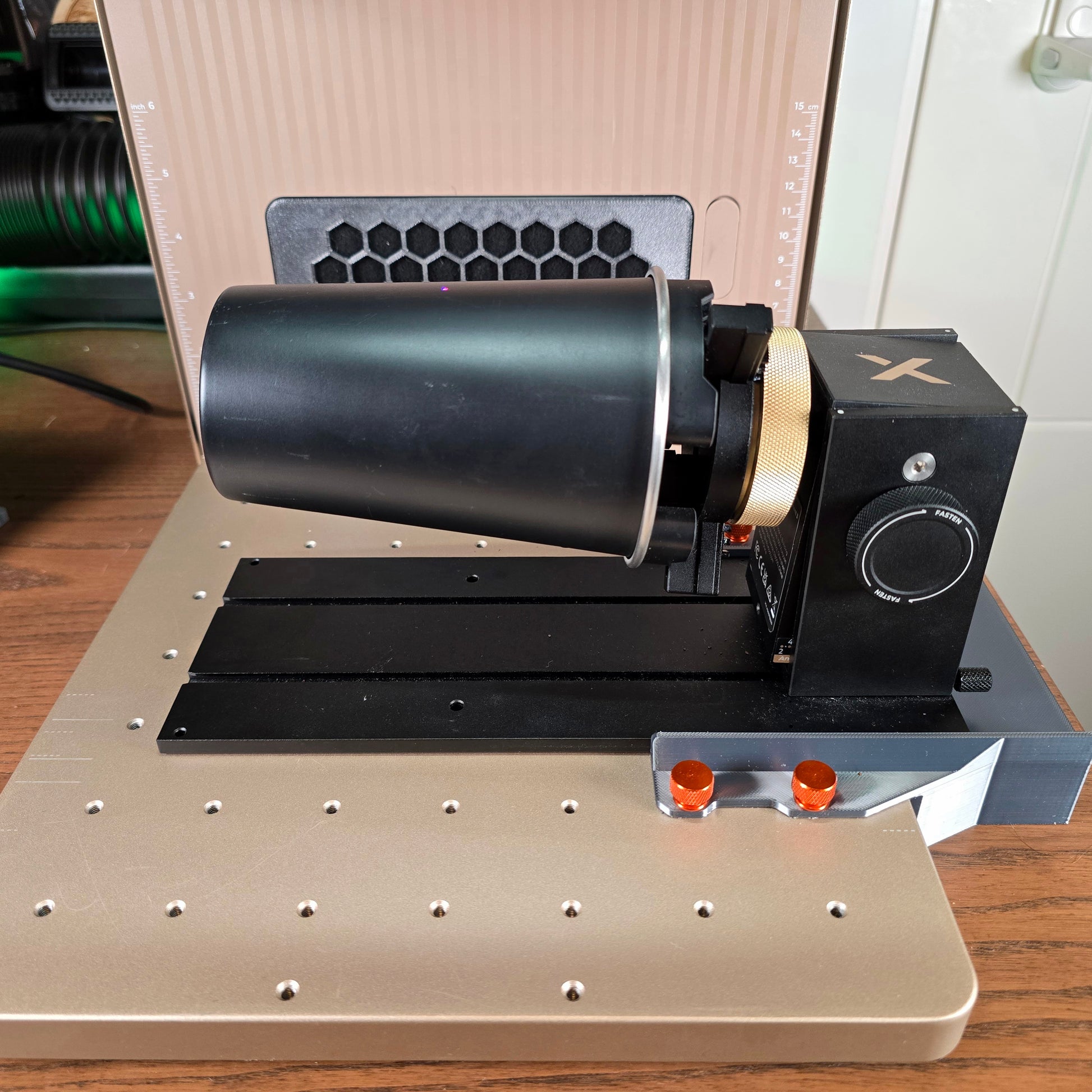

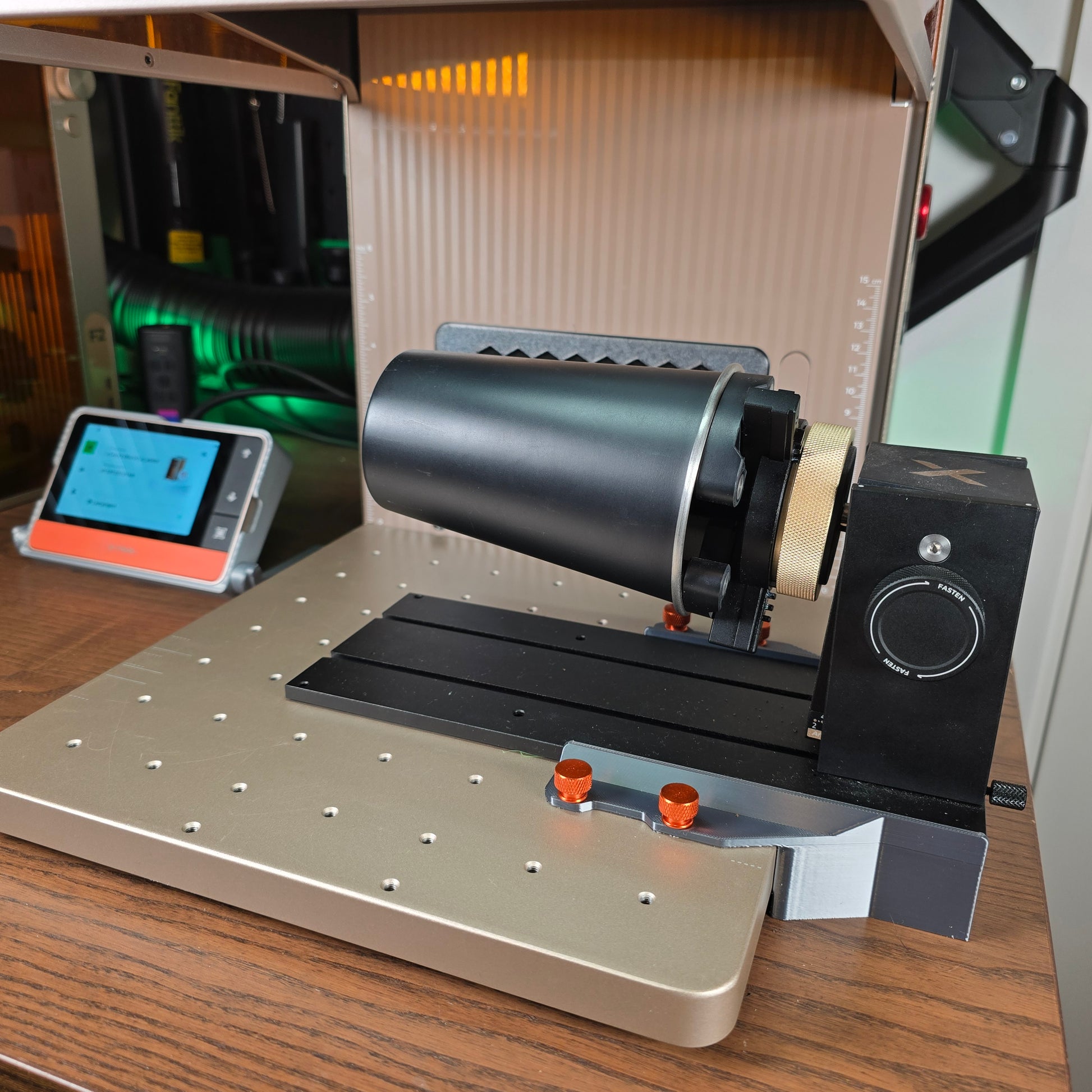

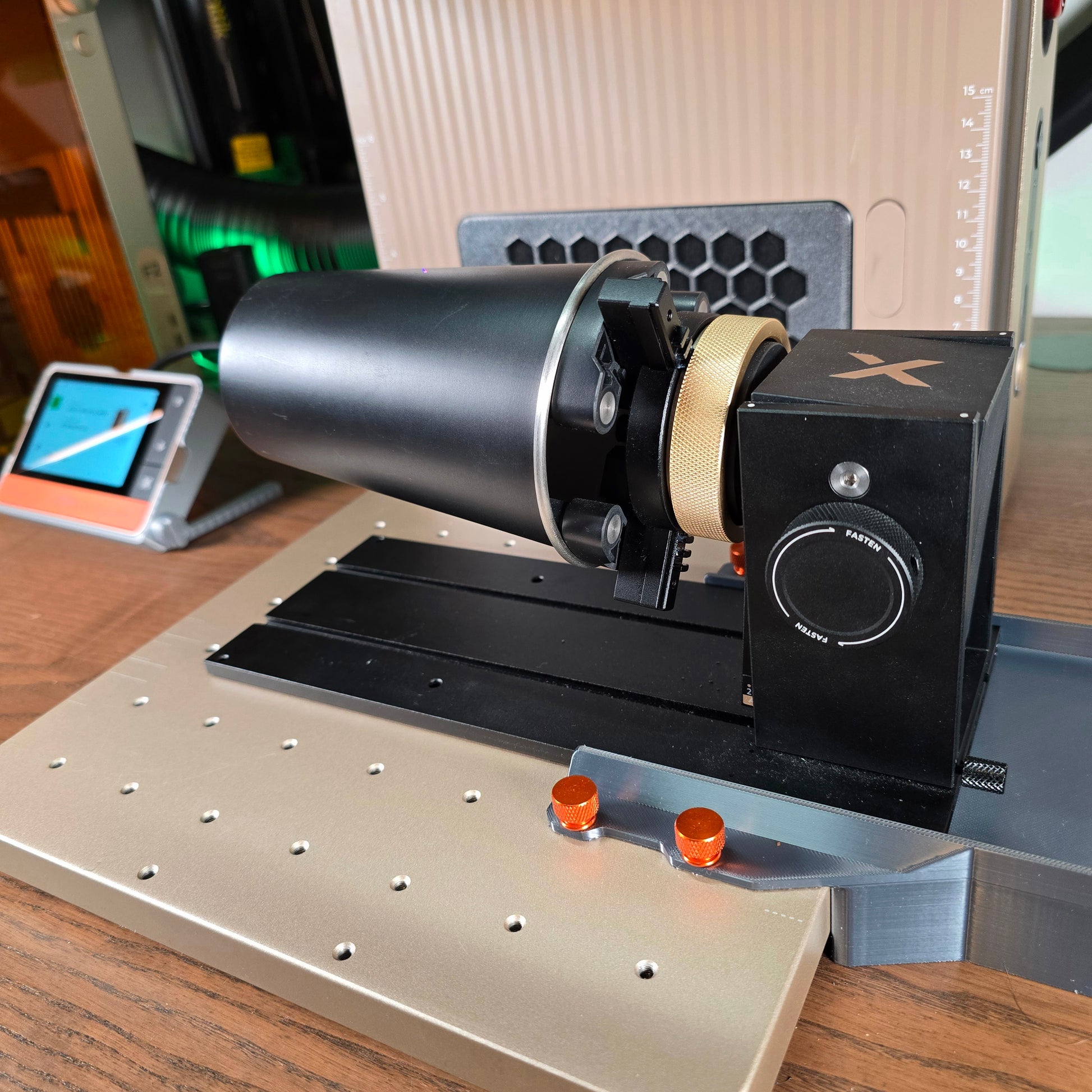

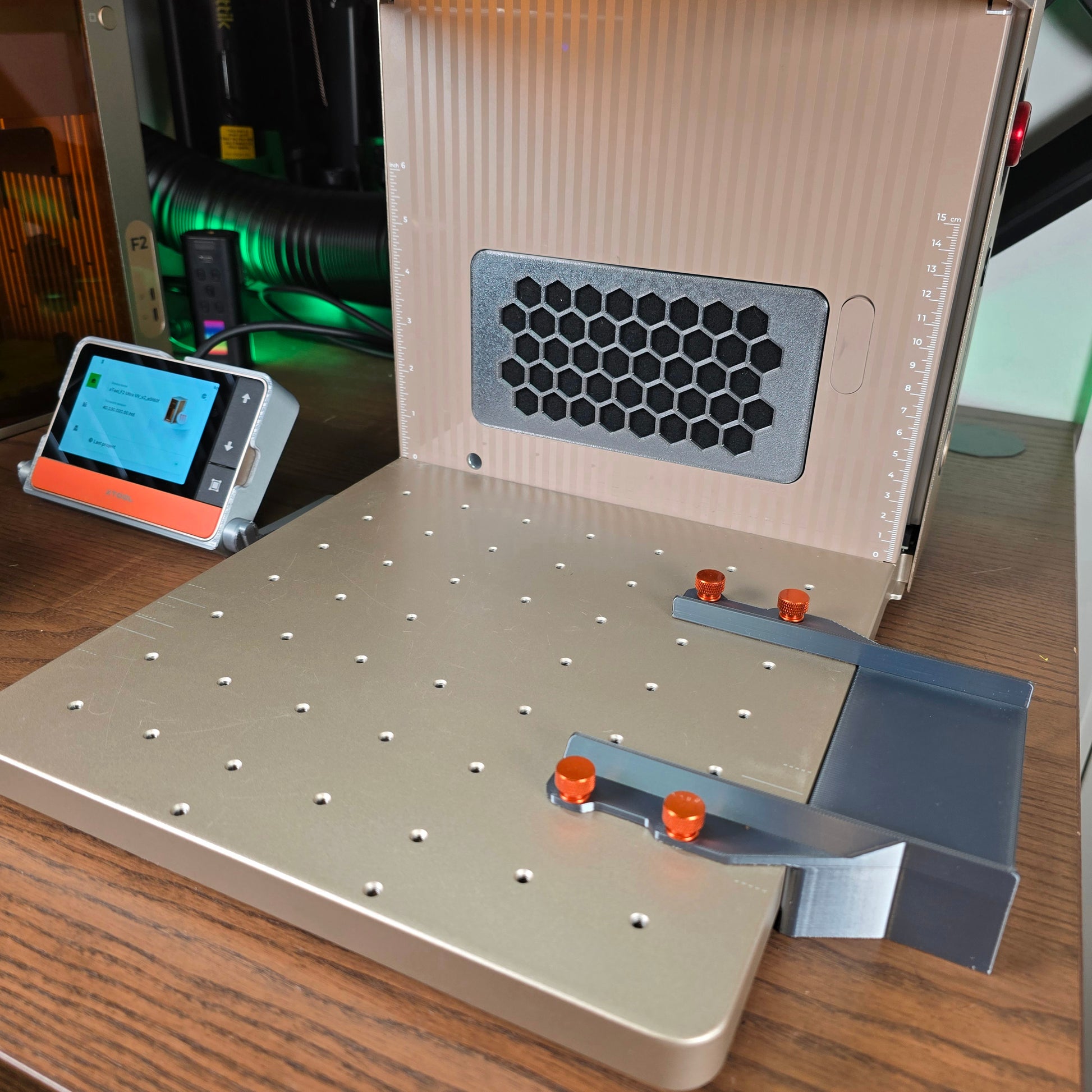

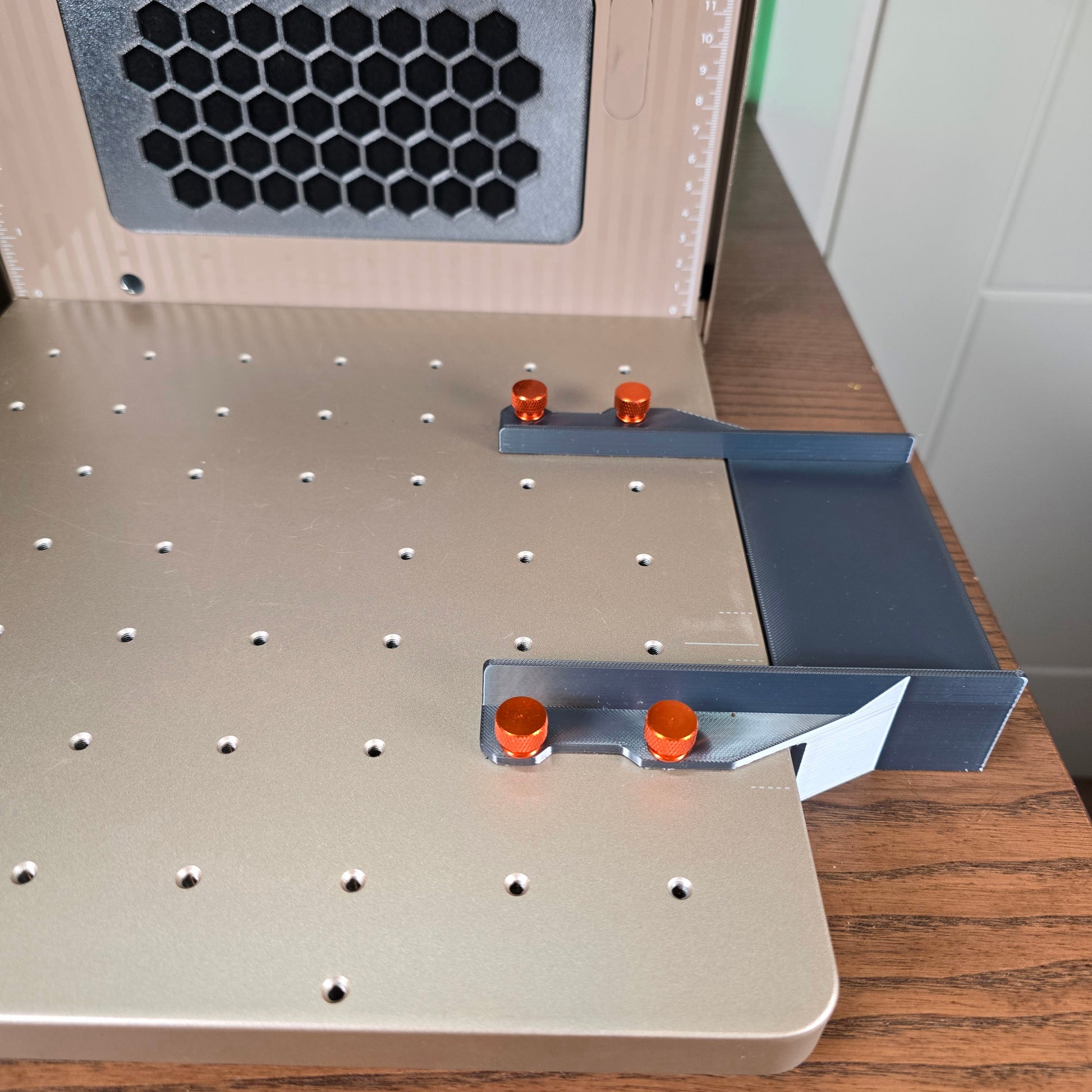

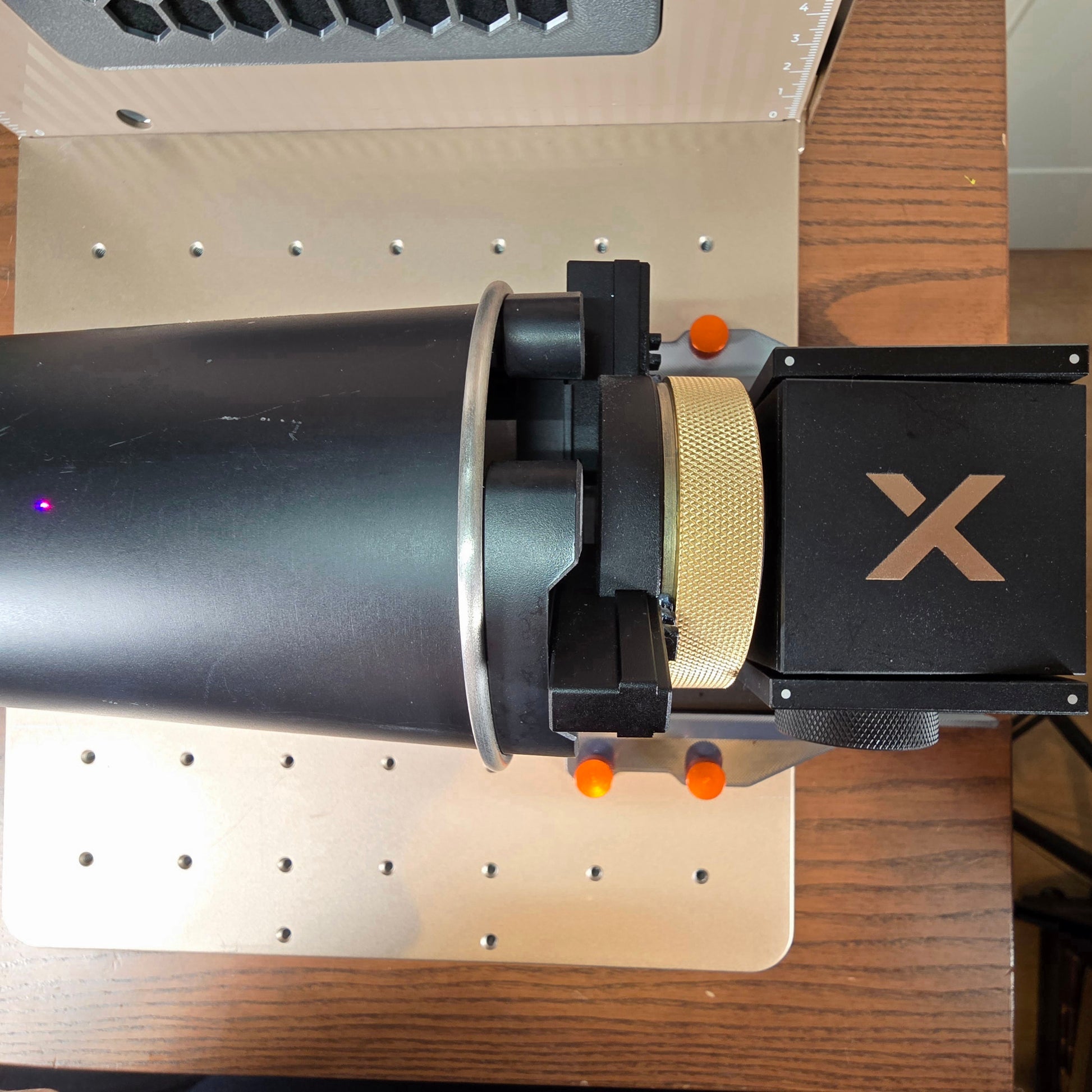

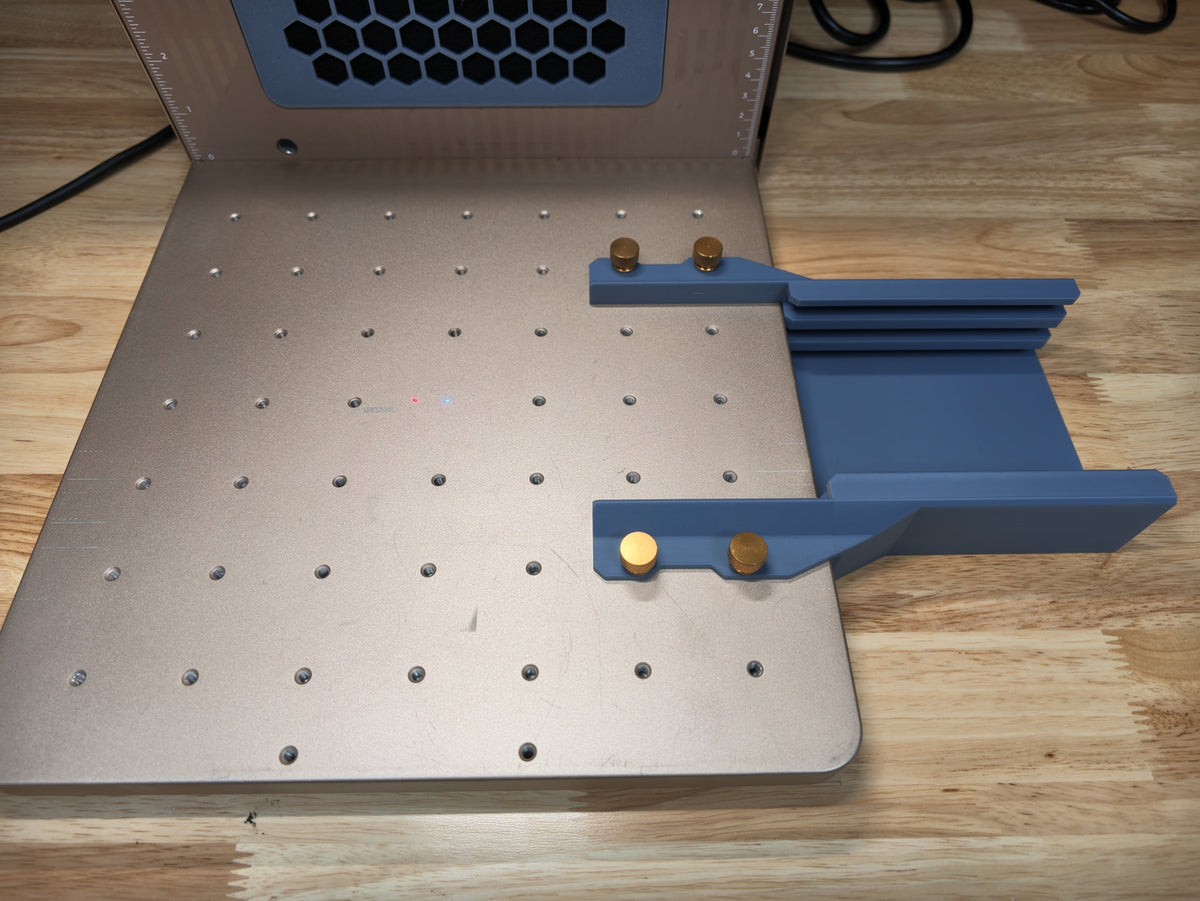

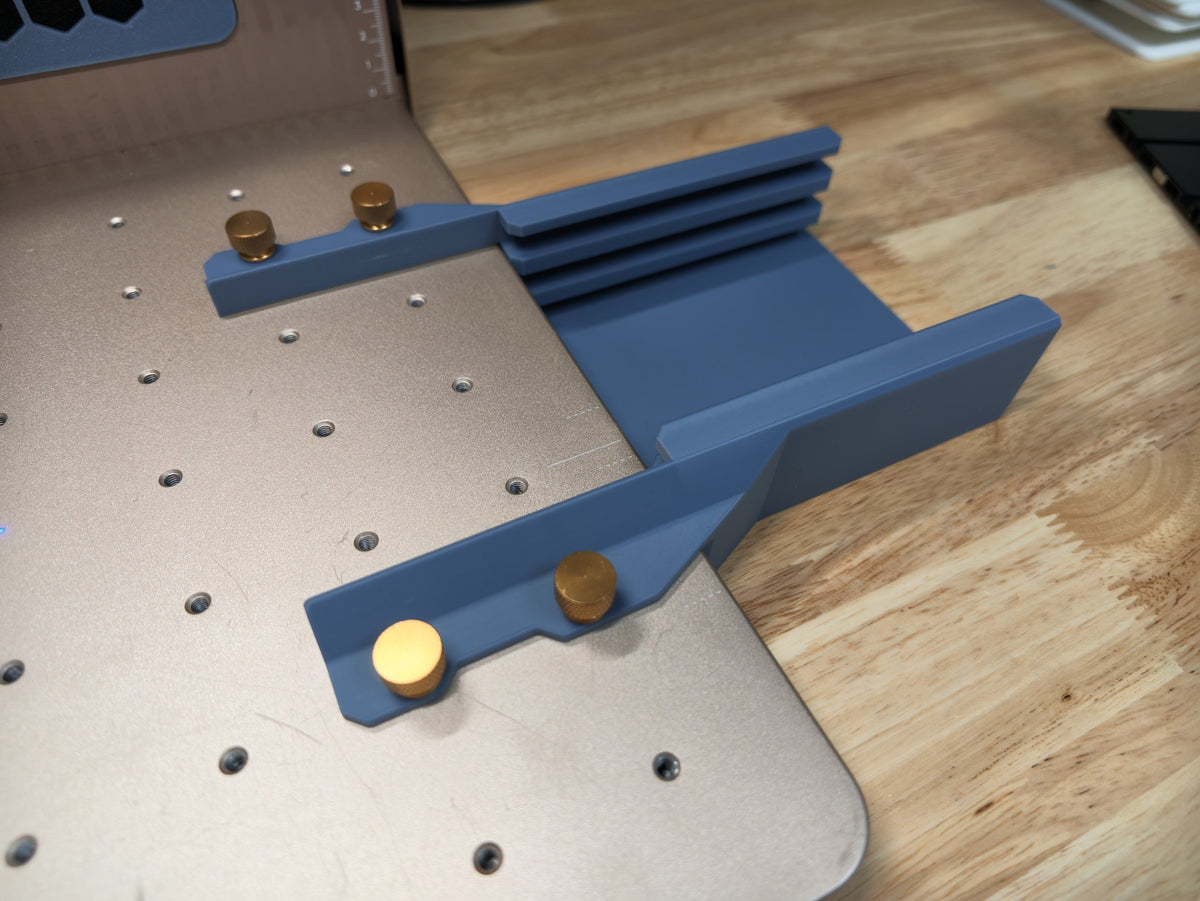

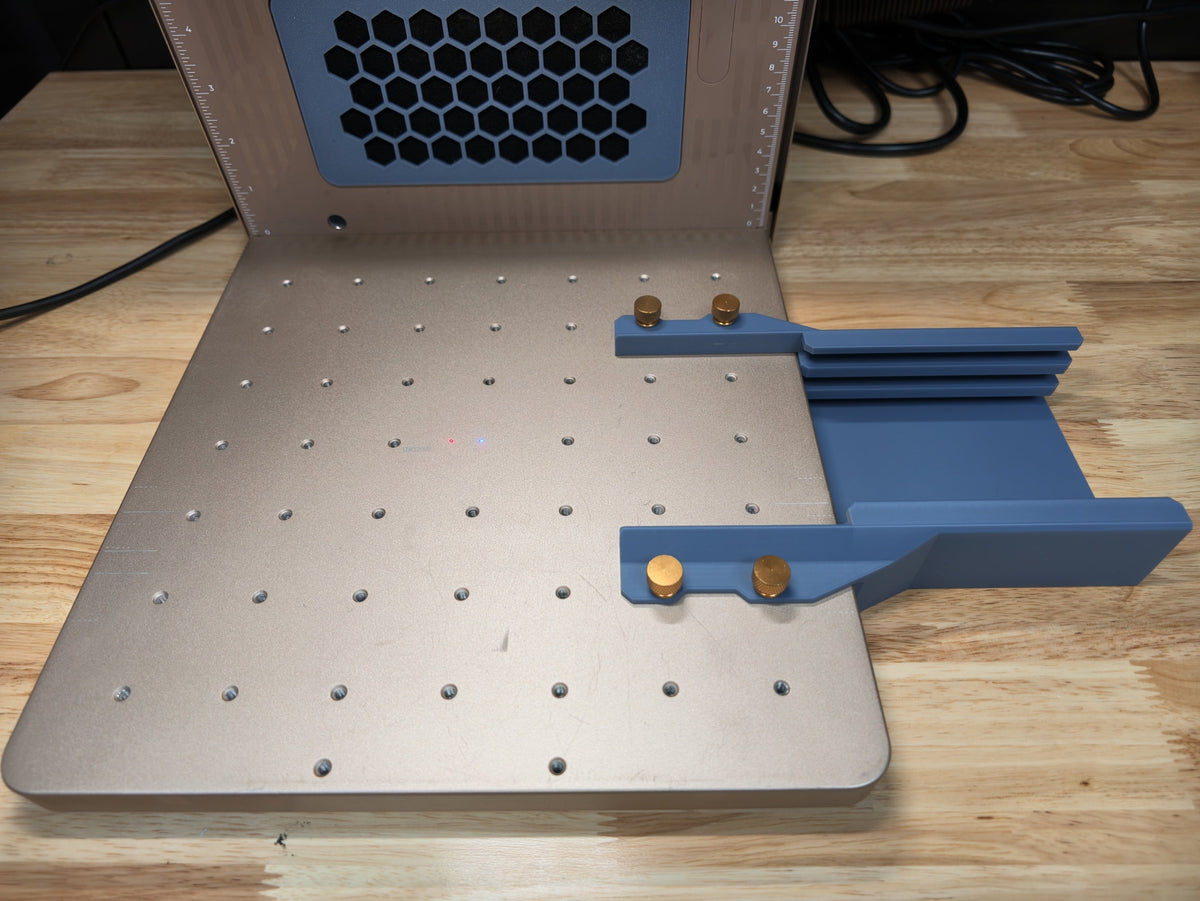

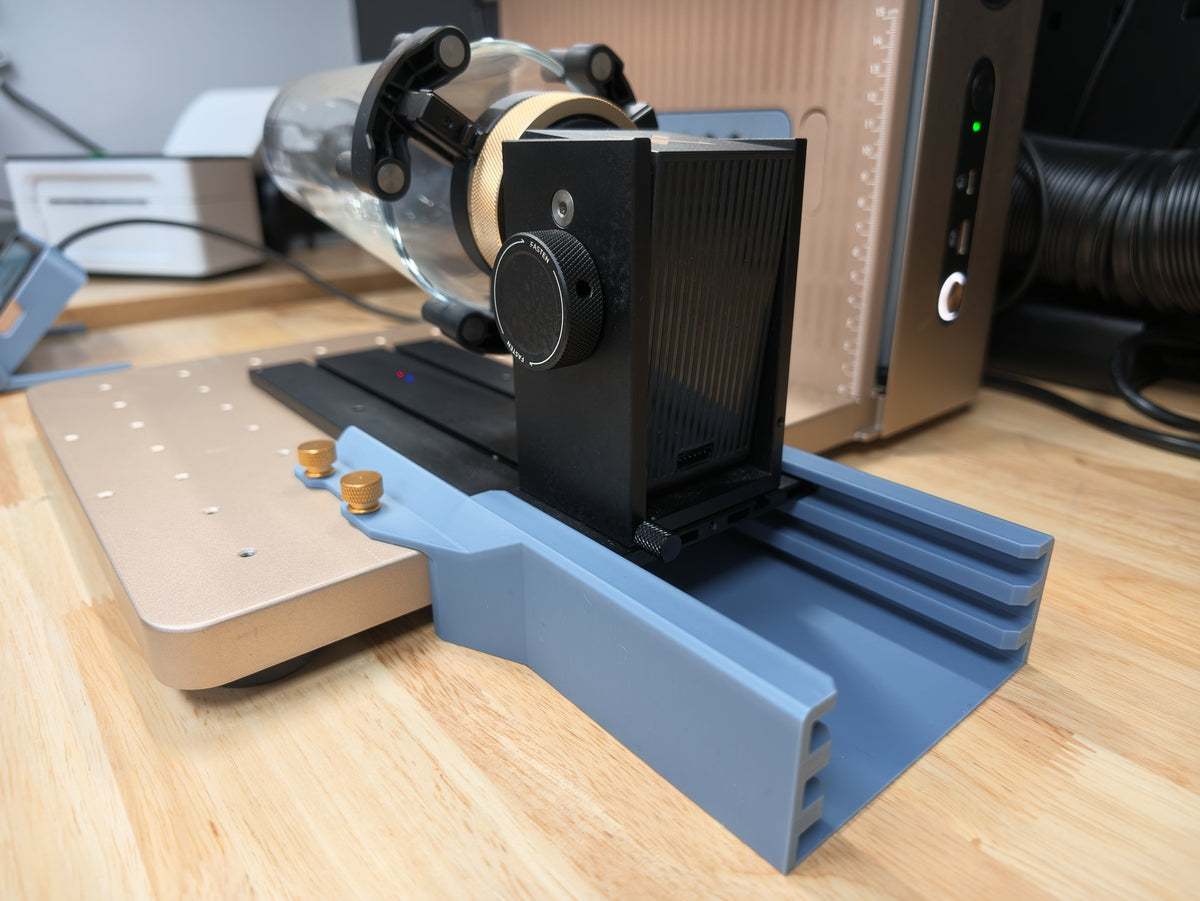

This alignment guide mounts to the edge of your F2 Ultra bed and creates a straight reference channel for the RA3 to sit within. The rotary can slide forward and backward for positioning while maintaining accurate horizontal alignment.
No more guesswork.
No more repeated measuring.
No more misaligned engravings.
Designed for improved workflow efficiency and repeatable production results.
What You Will Receive
• STL file for the RA3 alignment rail
• Print guidance text file
Files are delivered instantly after purchase.
Compatibility
Designed for use with:
• xTool RA3 rotary attachment
• xTool F2 Ultra
• xTool F2 Ultra UV
Not compatible with other rotary models.
Always verify your machine model before printing.
Print & Fitment Notice
• Print at 100 percent scale
• Accurate printer calibration is essential
• Dimensional accuracy will affect fitment
• Minor sanding or adjustment may be required
• Recommended print settings are included in the downloadable guidance file
Rotary alignment depends on proper machine setup.
Always verify positioning before engraving.
Hardware Notice
This digital file does not include hardware.
You may choose to use:
• M4 x 8mm thumb screws
or
• The original screws supplied with your F2 Ultra riser stand
Hardware is not included.
Digital Product Policy
• Digital file only
• No physical product included
• No refunds, returns, or exchanges on digital downloads
• Files are available immediately after checkout
Please ensure you understand this is a digital STL file before purchasing.
Licence & Usage Terms
Licence (please read): This STL file is for personal use only. Print the jig for your own workshop and sell anything you make with it. What is not allowed: selling or giving away the printed jig itself (original or modified), and sharing, reselling or redistributing this file or any modified version of it.
All intellectual property remains the property of L3D Accessories.
Disclaimer
• This is an aftermarket digital design and is not affiliated with or endorsed by xTool.
• Users are responsible for correct printing, installation, and rotary verification before engraving.
• L3D Accessories accepts no liability for engraving errors, material waste, or damage resulting from improper setup or misuse.
